Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Hongmen
  • Model Number: HM-QG-MC
  • Application: road/high way/traffic station/parking lot
  • Certification: CE/ISO9001/ISO14001/CCC
  • type: D9 for access control
  • Remote Control: 434Mhz Frequency
  • Material: high strong aluminum alloy
  • Function: with LED light
  • Surface Treatment: Powder Coating
  • Boom length: 6m; 4.5m; 3m
  • Rising time: 6s; 4s; 1.5s
  • Lowering time: 6s; 4s; 1.5s

Packaging & Delivery

Packaging Details Wooden/Carton Packing.
Delivery Time 5 working days

Our Services



Hongmen, with a history of 16 years, offers a lifetime warranty on the motor and 12 months on the other parts, which means that you don't need to worry about the quality or stability of our products at all. We are the only manufacturer in China that provides such warranty if you compare us with the other suppliers.


Product Description



Parking access control

welcome to Hongmen Corporation, we provide high quality products and best service.



Products features:

(1) High tech surface treatment gives the high quality and vibrant look; and strong UV

     resistance to prevent color fading.

(2) Ready-made rack for loop detector device plug-in makes installation easy; and build in

     leakage circuit ensures safety.

(3) Low power consumption; build to last and high endurance to all weather operation.

(4) Unique mechanism design that allows switching the boom to opposite direction operation.

(5) One standard equalizing spring to adapt varied length of booms makes less spare parts to

     manage.



Technical Specification:

Input Voltage:                                                   220V AC

Motor Power:                                                     50W

Insulation Class                                                   E

Operation Temperature:                                      -30-50

Weight:                                                               50KG

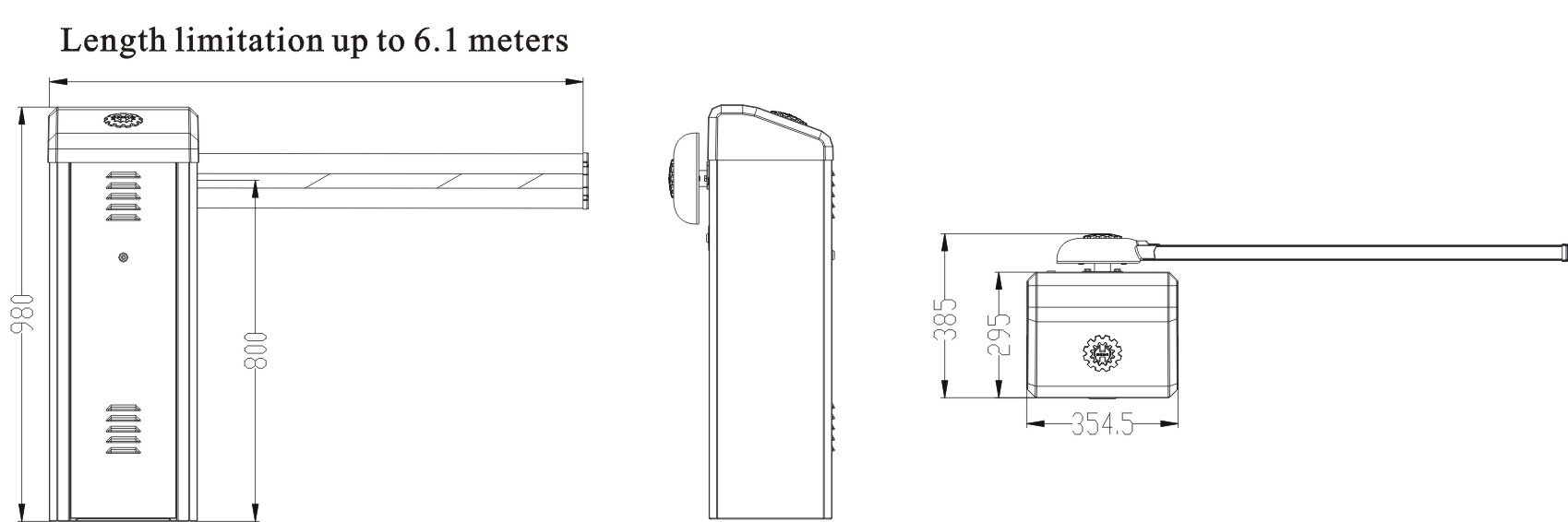

Distance Between Ground to Boom Center:        800MM



                                   Length Limit            Up Timing (S)                  Down Timing (S)

HMD9-6                           6.1                           6                                        6

HMD9-4                           4.5                           4                                        4

HMD9-1                            3                            1.5                                   1.5



Color Code                Top Cover                Casing                 Casing Cover

A                               Glossy Silver             Glossy Silver         Glossy Silver

B                               Sky Blue                   White                   Sky Blue

C                               White                        Satin Grey            Satin Grey

D                               Orange                      Orange                 Orange


















Company Information





We are the largest gate manufactuer in China and all of our gates are CE certified. With more than ten years of exporting experience, we have been exporting these gates to the countries, such as Turkey, India, Middle East and most of the APAC countries.





We sincerely welcome you to join us and look forward to a long-term business relationship with you.
